Shown here in Midnight Blue Nitro finish with Blackguard and Black hardware.
Nashville T-style electric. Hand-made, Semi-hollow body with Reverse Headstock.
Redefining sexy and sounding mature beyond its years, this guitar is ready to Rock!
Available in your choice of colours in two distinctly different finish types.
1) Oil based pigment and dye.
i) Black Raven
2) Fine sprayed non-gloss Nitro.
i) White Raven
ii) Midnight Blue
To maximize resonance and voicing, no grain filler is used on this Ash topped, Mahogany back & sides build.
Pick-ups:
1) Thunderhead [Rock] Nashville set
Master your gain stages but don't take this the wrong way. We've
tweaked this set to handle higher gain found in classic Plexi's,
100W SL's, and even Boogies; but it all cleans up so well you
may momentarily forget that you are Texas slaying or Puppetriffing.
Neck: Mexas Mojo (SRV to Vai and then some)
Middle: Big Fella (Loud and aggressive with sweet roll-off.
This pickup has a steel base-plate for greater
midrange punch)
Bridge: T22X (50's classic tone refined by using Alnico 5 on
the low strings and Alnico 2 on the high strings)
CLICK HERE to watch Jay Leonard J demo and compare all three
T-N3-SLIM models on youtube.
T-N3 SLIM ROCK
T-N3-SLIM ROCK - SPECIFICATIONS
BODY:
Mahogany Back & Sides / Ash Top.PICKGUARD:
Black with white bevel.NECK:
Bolt On with High Grade Quarter-Sawn Torrified Maple.
Custom C profile.FRETBOARD:
Rosewood with White Dots.
21 Jescar .047x.095 Nickel Frets.SCALE:
25.5 InchTRUSSROD:
Dual Action Spoke WheelMACHINE HEADS:

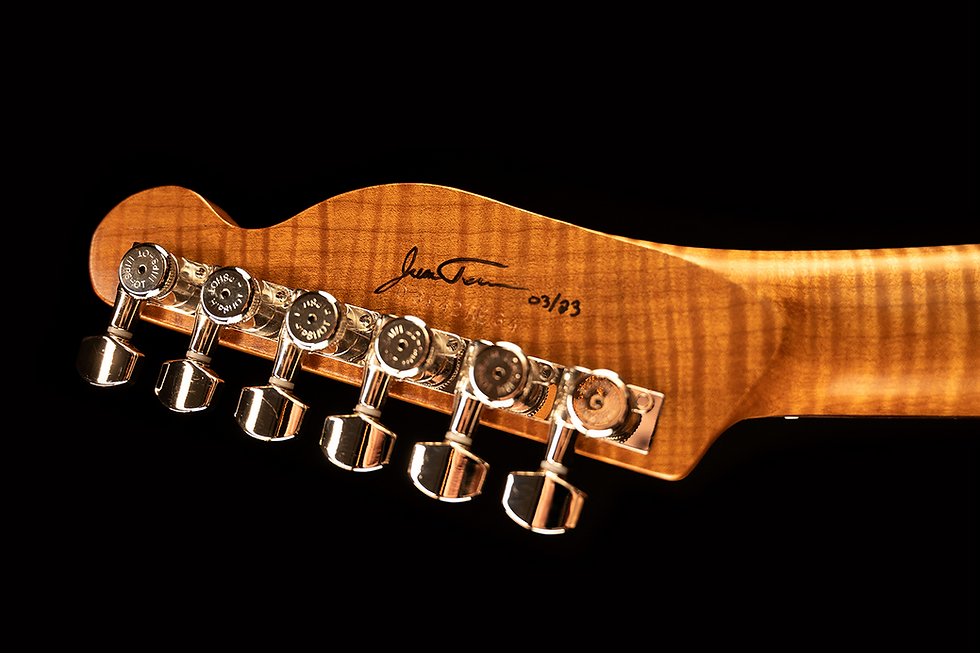

Hipshot. 6 in-line, staggered, locking tuners (Nickel)STRING TREE:
Graphtech Black TusqNUT:
Graphtech TusqBRIDGE:
Nickel Babicz Single Coil Z Series T Bridge with FCH eCam Saddle Tech. String through body.PICK UPS:
'Thunderhead' Rock configuration.Nashville style pick-up set.
Hand-wound and custom voiced exclusively for Teran Guitars
T-N3-SLIM ROCK model.
Handle higher gain stages exceptionally well, but don't kid yourself, this is no one-trick-pony. The versatility is incredible, this guitar will handle all genres and clean up impeccably.- NECK: 7.3K Alnico 5 on Low strings / Alnico 2 on High strings.
Classic Steel cover.
Waxed / RWRP Hum cancelling / 42 awg poly-coated wire / vintage pushback cloth - MIDDLE: 9.0K Alnico 5.
Waxed / RWRP Hum cancelling / 323 awg wire / with Steel baseplate - BRIDGE: 8.4K Alnico 5 on Low strings / Alnico 2 on High strings.
42 awg polyurethane coated wire / Waxed / RWRP Hum cancelling
CONTROL PLATE:
Custom Hand-wired 5-way Oak Grigsby switch
500K CTS Audio Taper Pots
Emerson .015 Paper-in-oil capINPUT:
Pure-tone jackKNOBS:
Black Pearltop Chrome Domed- NECK: 7.3K Alnico 5 on Low strings / Alnico 2 on High strings.
